Basic Info.
Model NO.
Q367F
Nominal Pressure
Pn16-Pn40
Channel
Straight Through Type
Structure
Trunnion Mounted Ball Valve
Type
Trunnion Mounted Ball Valve
Function
Shut-off
Temperature
-20~232
Application
Water, Oil, Air
Size Range
Dn350~Dn1200
Body Material
St.37.0/A106/Steel 20
Test Standard
API 598
Place of Origin
Wenzhou
Transport Package
Carton Box+Plywood Case
Specification
CE
Trademark
WENBAO
Origin
China
HS Code
8481804090
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
600.000kg
Product Description
WB-118 Fully Welded Trunnion Mounted Steel Ball Valve for Oil and Gas
Features:
Material:
Body: ST37.0/A106/Steel 20
Ball: SS304
Stem: 2Cr13
Stem seal: FPM or VITON
Ball seal: RPTFE (PTFE+C)
*The stem height and face to face dimension according to client's requirements.
Main Parts and Materials
1 | Body | AISI 20 | 6.2 | Hexagon Screw | 8.8 |
| 2 | End Socket | AISI 20 | 6.3 | O-Ring | Viton |
| 3 | Ball | 304 | 6.4 | Oilless Bearing | 304+PTFE |
| 4.1 | Support Ring | A105 | 6.5 | Drain Plug | 20Cr13 |
| 4.2 | Seat | PTFE-C | 7.1 | Branch Pipe | AISI 20 |
| 4.3 | O-Ring | Viton | 7.2 | Upper Gland | A105 |
| 4.5 | Spring | 17-7pH | 7.3 | O-Ring | Viton |
| 5.1 | Stem | 20Cr13 | 7.4 | Gasket | RPTFE |
| 5.2 | Oilless Bearing | 304+PTFE | 7.5 | Packing | 20Cr13 |
| 5.3 | Thrust Gasket | PTFE | 7.5 | Hexagon Screw | 8.8 |
| 5.4 | O-Ring | Viton | 7.6 | Clamp Spring | 65Mn |
| 5.5 | O-Ring | Viton | 41 | Actuator | |
| 5.6 | Flat Key | AISI 1045 | 42 | Bolt | 8.8 |
| 6.1 | Base | A105 | 43 | Nut | 8 |
Main Dimensions
| DN | PN | L | D | G | L2 |
| 350 | 16 | 510 | 510 | 377 | 405 |
| 400 | 16 | 838 | 560 | 426 | 420 |
| 450 | 16 | 991 | 578 | 487 | 430 |
| 500 | 16 | 991 | 660 | 530 | 470 |
| 600 | 16 | 1143 | 820 | 630 | 580 |
| 700 | 16 | 1346 | 1018 | 720 | 650 |
| 800 | 16 | 1524 | 1135 | 820 | 910 |
| 900 | 16 | 1727 | 1245 | 920 | 853 |
| 1000 | 16 | 1840 | 1415 | 1020 | 950 |
| 1200 | 16 | 2100 | 1576 | 1220 | 1030 |

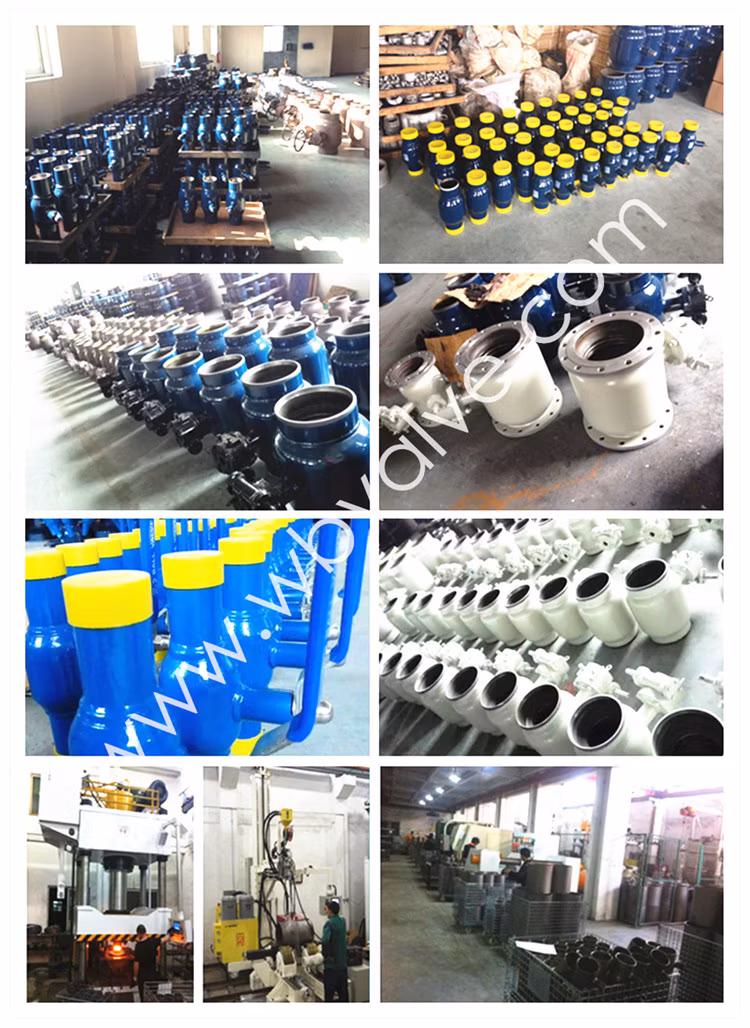

Company Overview

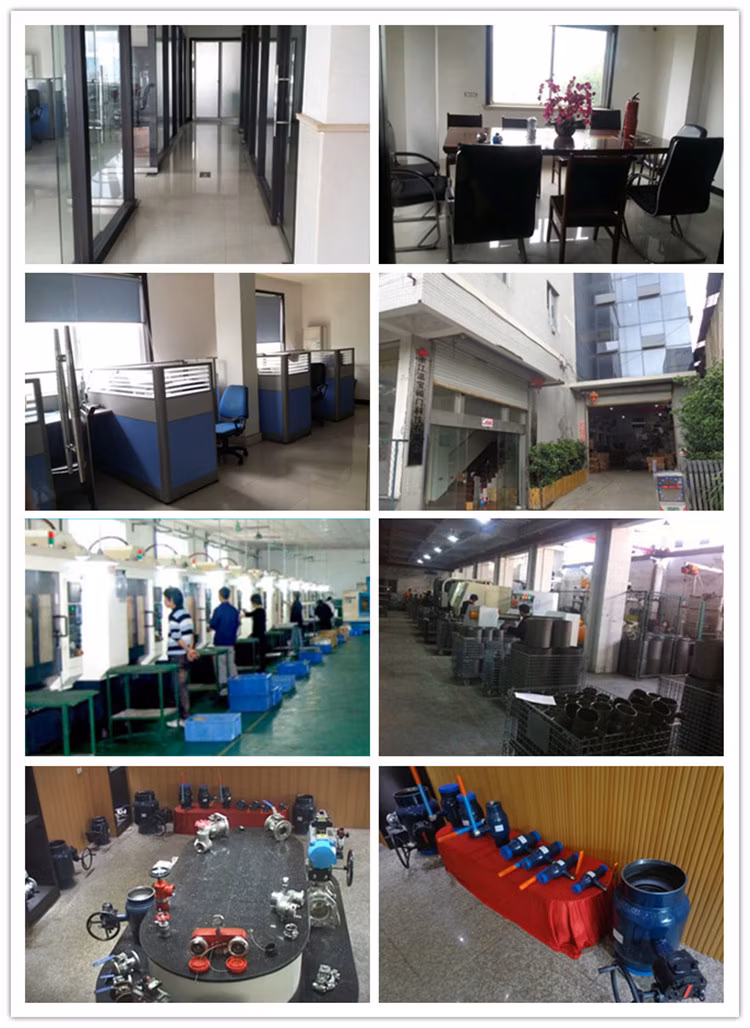

Wenbao Valve Co., Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve, 1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001: 2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea, CE of Europe, etc.
